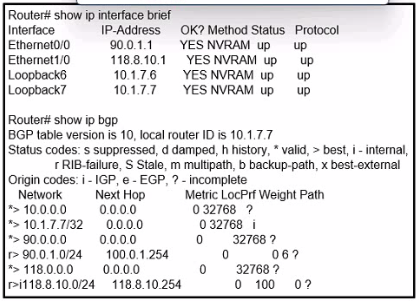

Refer to the exhibit.
Which action adds the 10 1 7.6-32 route to the BGP table?
Network engineer must configure an ElGRP stub router at a site that advertises only connected and summary routes. Which configuration performs this task?
A)
B)
C)
D)
Which Layer 3 VPN attribute allows different customers to connect to the same MPLS network wrth overlapping IP ranges?
The network administrator configured CoPP so that all SNMP traffic from Cisco Prime located at 192.168.1.11 toward the router CPU is limited to 1000 kbps. Any traffic that exceeds this limit must be dropped.
access-list 100 permit udp any any eq 161
!
class-map CM-SNMP
match access-group 100
!
policy-map PM-COPP
class CM-SNMP
police 1000 conform-action transmit
!
control-plane
service-policy input PM-COPP
The network administrator is not getting the desired result for the SNMP traffic and SNMP traffic is getting dropped frequently. Which set of configurations resolves the issue?
access-list 100 permit tcp host 192.168.1.11 any eq 161
access-list 100 permit udp host 192.168.1.11 any eq 161
!
policy-map PM-COPP
class CM-SNMP
no police 1000 conform-action transmit
police 1000000 conform-action transmit
!
control-plane
no service-policy input PM-COPP
!
interface E 0/0
service-policy input PM-COPP
!
interface E 0/1
service-policy input PM-COPP
access-list 100 permit udp host 192.168.1.11 any eq 161
!
policy-map PM-COPP
class CM-SNMP
no police 1000 conform-action transmit
police 1000000 conform-action transmit
class CM-SNMP
no police 1000 conform-action transmit
police 1000000 conform-action transmit
Refer to the exhibit.
An engineer configured IP SLA to monitor a next hop on a router for reachability When the next hop is unreachable, the router is executing tracking and failing over another route, but packet loss is experienced because the reachability is flapping. Which action resolves the issue?
