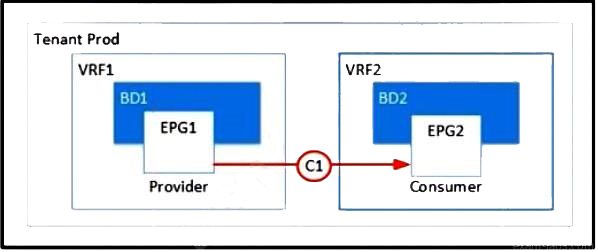

Refer to the exhibit.
Which two configurations enable inter-VRF communication? (Choose two.)
An engineer configures a one-armed policy-based redirect service Insertion for an unmanaged firewall. The engineer configures these Cisco ACI objects:
a contract named All_Traffic_Allowed
a Layer 4 to Layer 7 device named FW-Device
a policy-based redirect policy named FW-1Arm-Policy-Based RedirectPolicy
Which configuration set redirects the traffic to the firewall?
Associate the policy-based redirect subject with All_Traffic_Allowed.
Associate the bridge domain with FW-Device.
Associate the device interface policy with FW-Device.
Associate the service graph with All_Traffic_Allowed.
A bridge domain for a new endpoint group in the Cisco ACI fabric must meet these requirements:
The bridge domain must function as the default gateway for the subnet so that routing remains within the Cisco ACI fabric.
ARP requests must be managed via Layer 3 unicast packets or be dropped to reduce excessive broadcast traffic.
The impact of misconfigured virtual machines must be kept to a minimum by preventing IP addresses outside of the configured subnet from being routed.
Which set of actions must be taken?
Enable Limit IP Learning to Subnet.
Enable Unicast Routing on the bridge domain and configure a subnet.
Enable Unicast Routing on the bridge domain and configure a subnet.
Set Multi-Destination Flooding to Flood in BD.
Enable ARP Flooding.
Enable Unicast Routing on the bridge domain and configure a subnet.
Set L2 Unknown Unicast to Flood.
Disable Endpoint Retention Policy.
Refer to the exhibit.

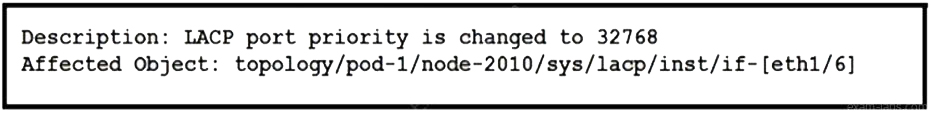

Refer to the exhibit. A Cisco ACI fabric displays this fault. Which set of actions modifies the event to be displayed as a warning in the future?
Create a new record.
Create a new record.
Change the severity level.
Change the severity level.
A network engineer must integrate VMware vCenter cluster with Cisco ACI. The requirement is for the management traffic of the hypervisors and VM controllers to use the virtual switch associated with the Cisco Application Policy. The EPG called "Vmware-MGMT" with VLAN 300 has been created for this purpose. Which set of steps must be taken to complete the configuration?
Attach the VMM domain to the target EPG with resolution preprovision, mode static, untagged access VLAN, and Port-Encap 300.
Enable Infrastructure VLAN on AAEP used toward VMware hypervisors.
Associate the target EPG with the VMM domain with default settings.
Create a static binding in the target EPG toward VMware hypervisors with VLAN 300, untagged access VLAN, and Untagged 802.1P mode.
