Available Number of Questions: Maximum of
242 Questions
Exam Name: Implementing Cisco Advanced Call Control and Mobility Services
Exam Duration: 89 Minutes
Related Certification(s):
Cisco CCNP, Cisco CCNP Collaboration Certifications
Cisco 300-815 Exam Topics - You’ll Be Tested in Actual Exam
What surprises most candidates is how quickly this exam turns from memorizing feature names into tracing real call behavior end to end. You need to think like a call flows person. A lot of the scoring weight lives in call control and dial planning inside Cisco Unified CM, where you're expected to reason through route patterns, partitions and calling search spaces, translation patterns, and digit manipulation without getting lost. That work only makes sense if you can tie it to signaling and media protocols, since SIP and SCCP choices affect where calls anchor, how early offer and delayed offer behave, and when media actually goes direct or stays pinned. The gateway side matters because CME and SRST are not trivia here, they are the practical safety net when Unified CM is unavailable, and you need to know what keeps registering, what falls back, and what features quietly stop working. Cisco Unified Border Element shows up as the boundary where dial plan meets policy, so expect to judge how routing, normalization, and interworking decisions change signaling and media on the way to another domain. Mobility is the glue that exposes weak thinking, since single number reach and device mobility depend on the same calling search space and routing logic you used earlier. The thing that trips people up is assuming a dial plan is just numbering, when it's really permission plus transformation, so practice walking a call from phone to gateway to border element and back until the choices feel automatic.
Cisco 300-815 Exam Short Quiz
Attempt this Cisco 300-815 exam quiz to self-assess your preparation for the actual Cisco Implementing Cisco Advanced Call Control and Mobility Services exam. CertBoosters also provides premium Cisco 300-815 exam questions to pass the Cisco Implementing Cisco Advanced Call Control and Mobility Services exam in the shortest possible time. Be sure to try our free practice exam software for the Cisco 300-815 exam.
1of 0 questions |
Cisco 300-815 Exam Quiz
✓ 0 answered
🔖 0 bookmarked
Cisco300-815
Q1:
Refer to the exhibit.

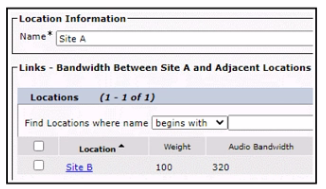

Refer to the exhibit. An engineer deploys CAC to Cisco UCM. UptofiveG.711 calls must be supported on the WAN link between Site A and Site B. Users report that only four concurrent calls are possible between Site A and Site B. Why isn't the filth concurrent call successful?
○
AThe G.729 audio codec is negotiated between Site A and B instead of the G.711 codec.
○
BThe QoS configuration on the WAN link causes the fifth call to be dropped.
○
CCisco UCM is using alternative links because of the Weight value.
○
DThe Audio Bandwidth value is undersized and must be set to 400 kbps.
Cisco300-815
Q2:
Refer to the exhibit.

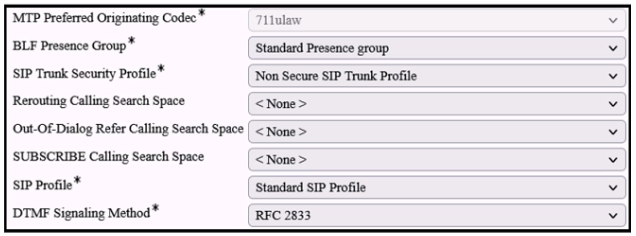

An administrator just Implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily. Which action resolves the issue?
○
ADisable SIP Red XX Options.
○
BChange to a range that does not result in MTP.
○
CChange OTMF Signaling Method to 'No Preference'.
○
DChange DTMF Signaling Method to 'RFC 4733'.
Cisco300-815
Q3:
Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster. What is the cause of this problem?
○
AThe subzone setting for video is too low.
○
BThe zone settings for video are too low.
○
CThe location setting for video is too low.
○
DThe pipe or link configuration for video is set to only one device.
Cisco300-815
Q4:
What does VoIP trace in a Cisco Unified Border Element do?
○
AIt stores all call trace data in system memory for failed calls.
○
BIt stores all can trace data in system memory (or successful and failed calls
○
CIt stores all call trace data in system log files for successful and failed calls.
○
DIt stores all can trace data in system file logs for failed calls.
Cisco300-815
Q5:
Refer to the exhibit.

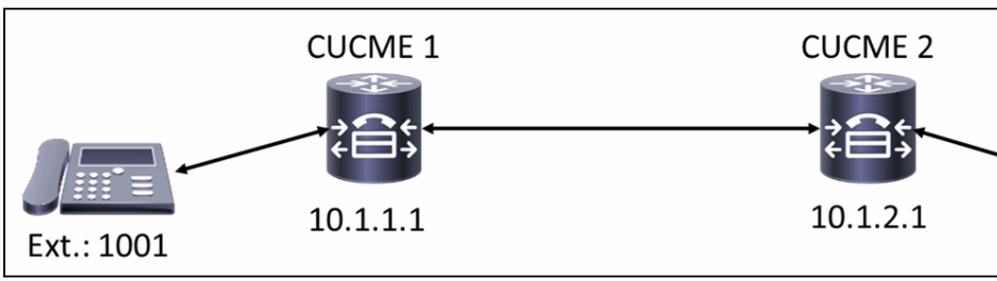

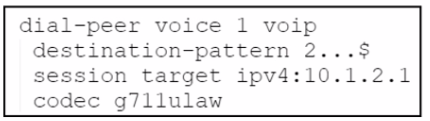

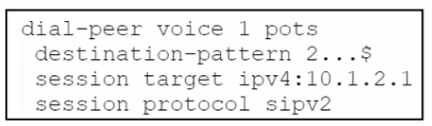

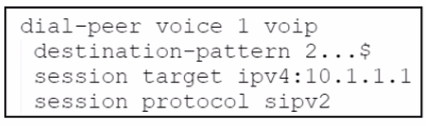

Refer to the exhibit. A company deploys an additional instance of Cisco UCME named CUCME 2 in a branch office. Phones in the main office are register of Unified CME named CUCME 1. Phones in the branch office are registered with their extension to CUCME 2. The engineer needs to configure CUCME the branch office using an 8-kbps codec. Which configuration should be applied to CUCME 1?
