Nokia
4A0-D03
Q1:
When PEs are connected to an Ethernet segment with at least one active MAC-VRF, which of the following statements about the AD per EVI updates sent by a PE is FALSE?
○
A
It contains the VNI information that is to be used in the data plane.○
B
It contains the multi-homing type used for the Ethernet segment.○
C
It contains the route-target so that the update can be imported into the correct MAC-VRF instance.○
D
A PE will advertise one AD per EVI update for each MAC-VRF associated to the Ethernet segment.
Nokia
4A0-D03
Q2:
When providing L3 multi-homing on two or more leaf routers, which of the following is FALSE?
○
A
In a single-active multi-homing scenario, the DF-election is used to identify the active leaf router.○
B
In an all-active multi-homing scenario, the DF-election is used to identify the leaf router that is responsible for forwarding BUM traffic to the host.○
C
All learned 3rd party prefixes are advertised using EVPN route type 5.○
D
The Ethernet segment is associated with the next-hop for the 3rd party prefixes.
Nokia
4A0-D03
Q3:

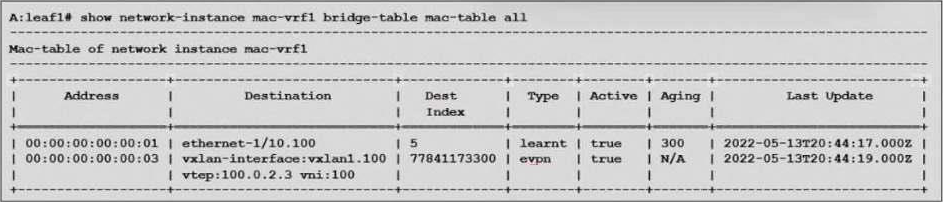

Consider the exhibit.
Which of the following statements is FALSE?
○
A
The remote host's IP address is 100.0.2.3.○
B
The MAC address 00:00:00:00:00:01 was learned through the data plane.○
C
The MAC address associated to the vxlan-interface will not age out.○
D
The VXLAN network identifier configured for this MAC-VRF is 100.
Nokia
4A0-D03
Q4:
Which of the following statements about the Layer 2 EVPN configuration/operation in a Nokia SR Linux is FALSE?
○
A
The Layer 2 EVPN is implemented as a MAC-VRF.○
B
MAC-VRF is configured with a VXLAN-interface towards each remote VTEP.○
C
Data plane MAC learning takes place on the local interfaces.○
D
Remote MAC addresses are learned from MP-BGP EVPN updates.
Nokia
4A0-D03
Q5:
Which of the following statements about the gateway-less data center interconnect solution is FALSE?
○
A
The IP addresses of the leaf routers need to be re-distributed into the WAN.○
B
The EVPN overlay is transparently carried over the WAN network.○
C
The leaf routers are able to establish a full mesh of VXLAN tunnels across the WAN.○
D
The data center gateway routers maintain a MP-BGP EVPN peering with the data center route reflector.
