OMG
OMG-OCUP2-FOUND100
Q1:
Choose the correct answer:
How many valid Action notations are shown below?
○
A
0○
B
1○
C
2○
D
3○
E
4
OMG
OMG-OCUP2-FOUND100
Q2:
Choose the correct answer:

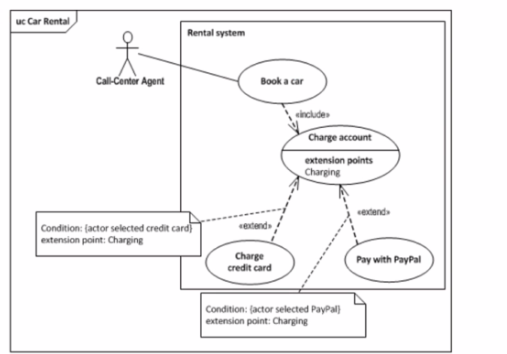

In the model shown below, what is gained by using the Extend relationship?
○
A
The Extend relationships avoid the need for behavior descriptions such as Activities.○
B
The Extend relationship is used here to perform a functional decomposition of the Use case behavior.○
C
This Use Case model could be updated with further payment methods without changing the main Use Cases 'Book a car' and 'Charge account'.○
D
Extend is a taxonomic relationship between Use Cases that extracts general descriptions into the super Use Case 'Charge account' to avoid redundant descriptions in the sub Use Cases 'Charge credit card' and 'Pay with PayPal*.
OMG
OMG-OCUP2-FOUND100
Q3:
Choose the correct answer:
Exactly two Player Instances are involved in the "Play Tennis" Use Case.
Which diagram depicts this scenario correctly?
A)
B)
C)
○
A
Option A○
B
Option B○
C
Option C○
D
Option D
OMG
OMG-OCUP2-FOUND100
Q4:
Choose the correct answer:

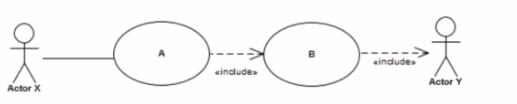

Which diagram contains only valid relationships?
A)
B)
C)
D)
○
A
Option A○
B
Option B○
C
Option C○
D
Option D
OMG
OMG-OCUP2-FOUND100
Q5:
Choose the correct answer:

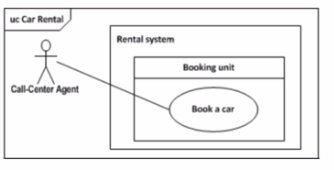

Consider the following diagram:
Who is the owner of the Use Case "Book a car"?
○
A
Car Rental○
B
Booking unit○
C
Rental system○
D
Call-Center Agent
