During a design workshop, an architect discovers that a customer plans to deploy Arc GIS and AutoCAD applications to a subi of VDI users. The project will scale to 1500 general purpose desktops, 50 AutoCAD users and 25 ArcGIS users. Planned redundancy must allow one host to be removed from any cluster for maintenance while still accomodating all users.
Desktops will be configured for each of the user groups:
* General purpose - 2vCPU, 2GB RAM, 40GB HOD, Windows 7
* AutoCAD - 4vCPU, 16GB RAM, 200GB HOD, Windows 7
* ArcGIS - 4vCPU, 8GB RAM, 500GB HOD, Windows 10

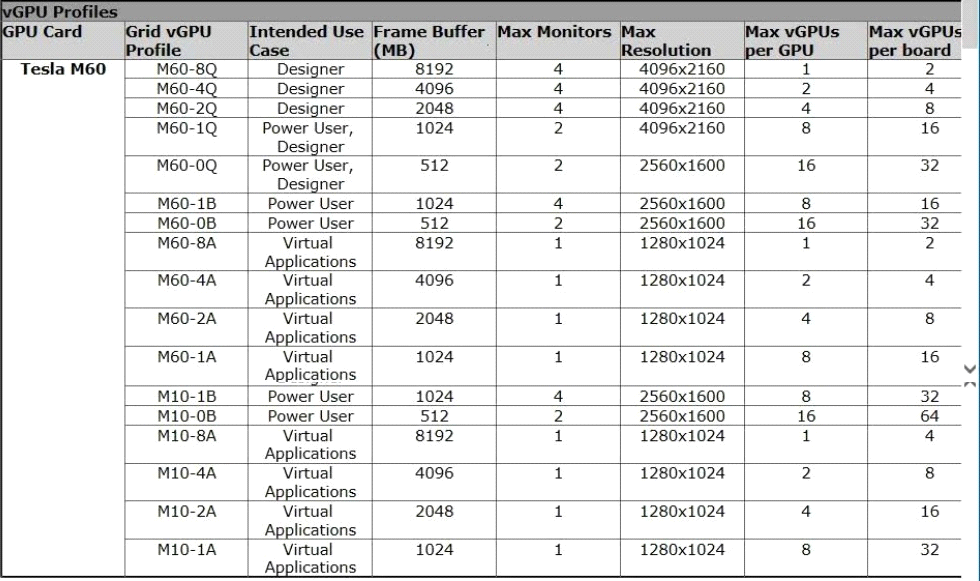

Referring to the exhibit, which two cluster configurations are recomended to support these desktop pools? {Choose two.)
- one with 16 nodes, 256GB RAM, Software 3D
- one with 4 nodes, 384GB RAM, 2x NVIDIA M60 using M60- 1Q Profiles
- one with 2 nodes, 256GB RAM, ix NVIDIA M10 using M10-1Q Profiles
- one with 16 nodes, 256GB RAM, Software 3D
- one with 5 nodes, 384GB RAM, ix NVIDIA M60 using M60-0Q Profiles
- one with 16 nodes, 192GB RAM, Software 3D
- one with 4 nodes, 384GB RAM, 2x NVIDIA M60 using M60-2Q Profiles
- one with 2 nodes, 256GB RAM, ix NVIDIA M10 using M10-2Q Profiles
- one with 18 nodes, 192GB RAM, Software 3D
- one with 5 nodes, 512GB RAM, ix NVIDIA M60 using M60-2Q Profiles
A company has a Horizon View environment with 10,000 desktops. It is preparing to deploy vRealize Operations for Horiz,

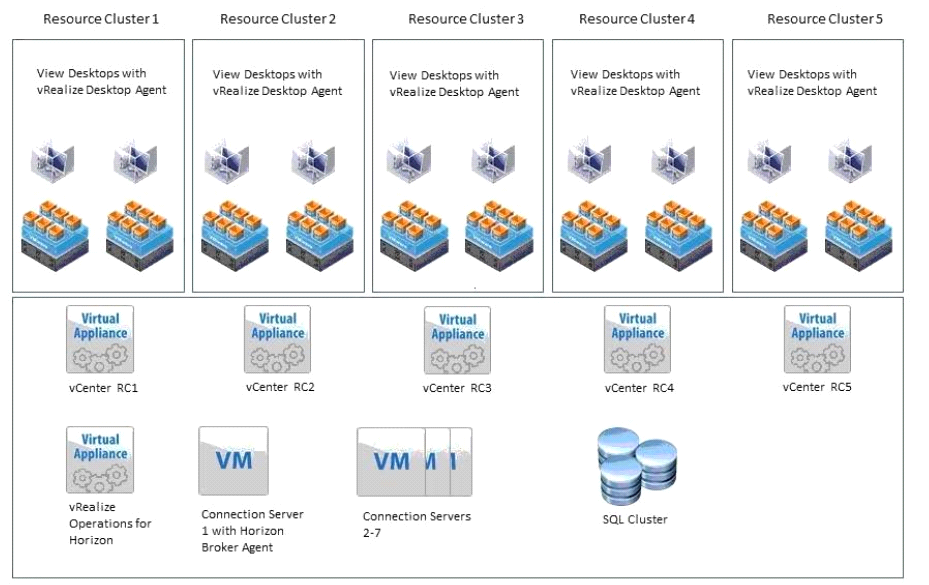

Refer to the exhibit.
Following VMware best practices, what recommendations should the company implement?
A customer wants to securely deliver applications. They have given these requirements to an architect:
* 1,100 corporate users
* Applications run on Windows
* Confidential data must remain inside the datacenter at all times
* Datacenter has a firewall separating it off from the corporate LAN
* Security team policy will NOT allow a corporate LAN subnet through the firewall to a datacenter subnet (example: source 172.16.30.0 /24, destination 10.10.1.0 /24 would NOT be allowed)
* Security team policy does allow corporate LAN subnets to access specific datacenter IP addresses (example: source 172.16.30.0 /24, destination 10.10.1.100 /24 would be allowed)
* 50 of the 1,100 internal users work exclusively on tablets, some Android and some IOS devices
Which two recommendations can the architect propose? (Choose two.)
An architect is deploying Horizon 7.0 on vSAN 6.2. The architect wants to take advantage of the erasure coding feature to save disk space. Each host contains 4TB of capacity flash disk. The desktop base image has 2GB of RAM and a 40GB C: drive. The cluster must support 200 concurrent users.
Which two configurations satisfy requirements? (Choose two.)
During recent SQL server maintenance, an issue was reported where some users were unable to access some of their assigned applications within the VDI environment. All users report being able to still connect to their instant clone desktops.
Which condition might account for the outage?
