Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The environment will utilize Citrix Provisioning (PVS) for image management of physical and virtual machines (VMs). Upon review of the current network infrastructure, the architect determined a number of considerations that will impact the overall imaging process.

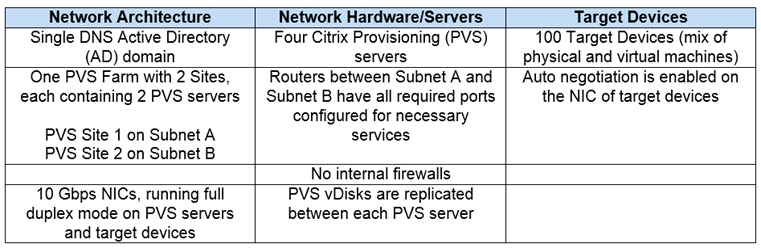

Click the Exhibit button to view the existing internal network and PVS infrastructure details.
What should the architect do to optimize the Citrix Provisioning server to target device communication and the streaming process?
Scenario: IT management has decided which server hardware model to use for its new Citrix Virtual Apps and Desktops Sites, but needs guidance on sizing the Hardware Layer.

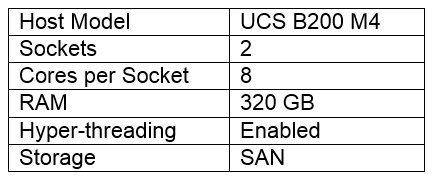

Click the Exhibit button to view the host details.
A Citrix Architect is planning to install Citrix Hypervisor 7.x on this host. How many vCPUs will be available to the Citrix Hypervisor host?
Scenario: A Citrix Architect is implementing a new Citrix Virtual Apps and Desktops environment.
The customer has 3 requirements:
All users must be able to aggregate resources from all Sites.
Both Sites should be treated as 1 equivalent farm set.
User connections should be directed to the New York Site with failover to San Francisco.

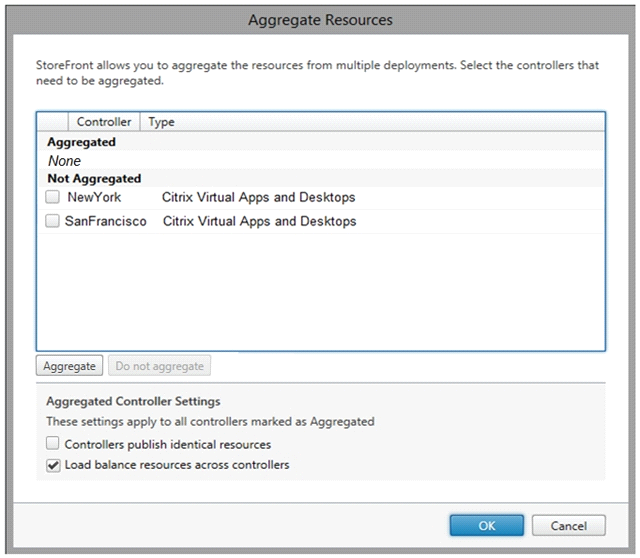

Click the Exhibit button to view the StoreFront configurations.
Exhibit 1.
Based on the configurations, requirement 1 is ______________, requirement 2 is ______________, and requirement 3 is ______________. (Choose the correct option to complete the sentence.)
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The Site will contain two Delivery Controllers. All machines are running on a single hypervisor platform. As part of the deployment, management has advised they want a database high-availability (HA) solution to protect the environment against the loss of a physical server.
Additional considerations for the SQL HA:
Downtime for Citrix administrative functions should be minimized.
Additional hardware or resources should be minimized.
Limited knowledge available to configure and maintain SQL infrastructure.
Which HA configuration should the architect use for this deployment?
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The customer previously installed all applications locally on managed laptops and desktops but is willing to evaluate other application delivery methods as part of the new deployment. The environment will be standardized on Windows 10 and Windows Server 2016 for the Virtual Delivery Agent (VDA) machines.

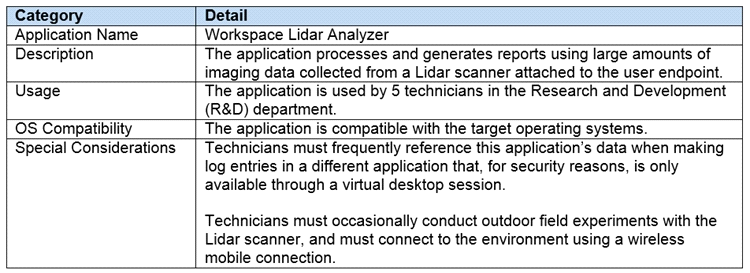

As part of an application analysis performed earlier in the project, the information in the exhibit was collected regarding 1 of the required applications.
Click the Exhibit button to view the information.
The customer has the additional objective of minimizing the amount of network traffic in the environment, particularly on WAN or metered links.
How should the architect deploy the application?
