Nokia
4A0-105
Q1:
How does PBB forward broadcast, unknown-unicast and multicast traffic from a B-VPLS to an l-VPLS?
○
A
The receiving PE checks the l-TAG in the l-SID to determine if there is a local l-VPLS on the node.○
B
The receiving PE checks the l-SID in the l-TAG to determine if there is a local l-VPLS on the node.○
C
The receiving PE checks the service label in the mpls header to determine if there is a local l-VPLS on the node.○
D
The receiving PE checks the multicast B-DA to see if an l-SID has been mapped to the B-DA that matches a local l-VPLS on the node.
Nokia
4A0-105
Q2:

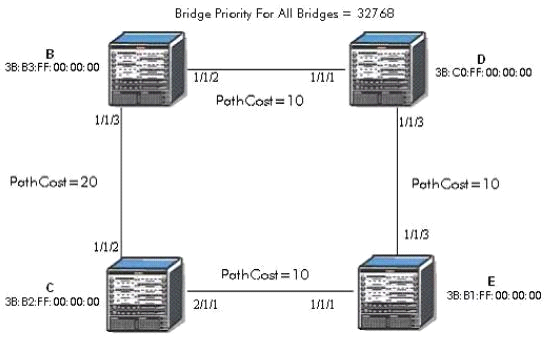

Click on the exhibit below.
Which port will become the alternate port?
○
A
Bridge B 1/1/3○
B
Bridge B 1/1/2○
C
Bridge C 1/1/2○
D
Bridge C 2/1/1○
E
Bridge D 1/1/1○
F
Bridge D 1/1/3○
G
Bridge E 1/1/1○
H
Bridge E 1/1/3
Nokia
4A0-105
Q3:
Click on the exhibit below.
Which port will become the alternate port?
○
A
Bridge B 1/1/3○
B
Bridge B 1/1/2○
C
Bridge C 1/1/2○
D
Bridge C 2/1/1○
E
Bridge D 1/1/1○
F
Bridge D 1/1/3○
G
Bridge E 1/1/1○
H
Bridge E 1/1/3
Nokia
4A0-105
Q4:
A router has just learned the 10th MAC address while the FDB size is also set to 10. What is the likely outcome?
○
A
The frame is dropped.○
B
The frame is always flooded○
C
The frame is forwarded and MAC learning is automatically disabled.○
D
The frame is discarded if the destination is unknown.○
E
More information is required to determine the fate of this new frame.
Nokia
4A0-105
Q5:

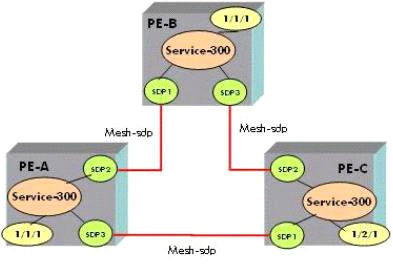

Click on the exhibit below.
A new router named PE-D is to be directly connected to PE-C and is required to be added to the existing VPLS 300. The design requires the least amount of signaling, the least amount of configuration changes for existing sites and the new site has to have access to all existing sites. How should the new site be added to VPLS 300?
○
A
Configure a mesh-sdp between all existing PE routers and the new PE router○
B
Configure a mesh-sdp between PE-C and PE-D○
C
Configure a spoke-sdp between PE-C and PE-D.○
D
It is not possible to meet the design requirements.
