Nokia
4A0-C02
Q1:
Which of the following about self-generated traffic QoS is TRUE?
○
A
The DSCP marking stays ncl for all applications; only the internal forwarding class is manipulated across different applications.○
B
DSCP bits can be set per application, per routing instance.○
C
The internal forwarding class for self-generated traffic is set once and applied to the base router and all VPRN instances.○
D
Self-generated traffic can be marked at Layer 2 no matter what encapsulation is used on the network interfaces.
Nokia
4A0-C02
Q2:
What is the purpose of the Nokia SR design that includes, for every ingress unicast queue, one hardware queue per destination forwarding complex (FFPC)?
○
A
To utilize memory resources efficiently○
B
To avoid Head of Line blocking○
C
To achieve more granularity of QoS control○
D
To make hierarchical scheduling/policing possible
Nokia
4A0-C02
Q3:
By default, how does a hybrid port on a Nokia 7750 SR share its allocated buffer space between access and network pools?
○
A
All buffer space is initially allocated to access pools, and some of it is reallocated to network pools if network interfaces are configured on it.○
B
All buffer space is initially allocated to network pools, and some of it is reallocated to access pools if service SAPs are configured on it.○
C
Buffer space is allocated 50% for access pools and 50% for network pools.○
D
Buffer space is allocated 25% for access pools and 75% for network pools.
Nokia
4A0-C02
Q4:

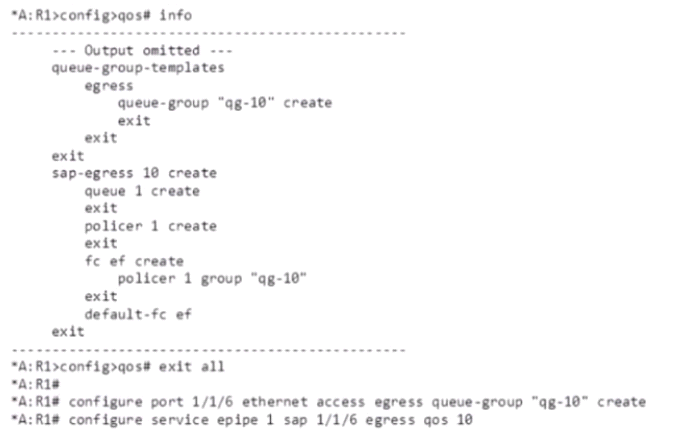

According to the SAP-egress policy configured and applied, which queue will EF traffic use?
○
A
Queue 2 in 'policer-output-queues,' the default queue group used by policers on egress, because there are no queues in the 'qg-10' queue-group template.○
B
The local SAP's queue 1, because there is no queue in the 'qg-10' queue-group template for EF traffic.○
C
Queue 1 in the 'qg-10' queue-group, because it exists by default and all traffic is mapped to it.○
D
EF traffic is dropped because there are no queues in the 'qg-10' queue-group template.
Nokia
4A0-C02
Q5:
Which of the following statements about a Management VPLS is FALSE?
○
A
Operates in transparent mode.○
B
Carries RSTP BPDUs only.○
C
Assigns RSTP state to other VPLS services.○
D
Allows load balancing among multiple management VPLS instances.
